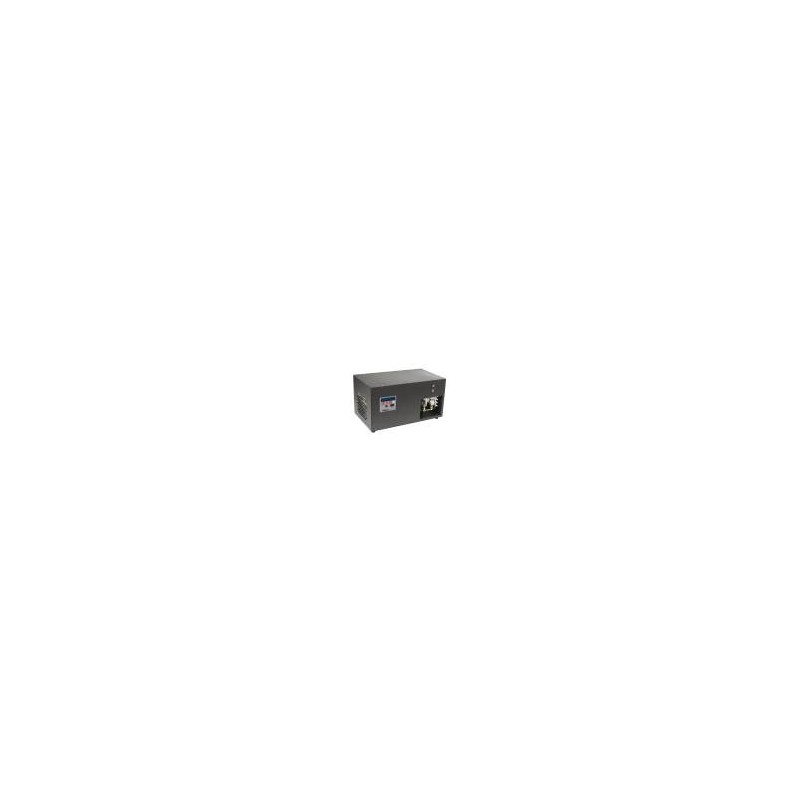

DryLine Antenna ® Dehydrator, Low-pressure membrane, 19 in rack mountable, 2.0-5.0 psig, with summa
$0.00
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
MOJAVE1-48
999999 Items
Data sheet
- /pdfs/MOJAVE1-48 .pdf
- docs Y
- y
- specs Y
- y
- Includes
- 3/8 in polyethylene tubing - 90º elbow fitting - Male connector fitting - Needle valve - Power cord - Power cord connector lock - PTFE tape - Screws
- Product Width
- 48.18 cm - 17.00 in
- Net Weight
- 11.79 kg - 26.00 lb
- Product Depth, Packed
- 49.53 cm - 19.50 in
- Product Height, Packed
- 52.71 cm - 20.75 in
- Product Width, Packed
- 59.06 cm - 23.25 in
- Product Height
- 22.23 cm - 8.75 in
- Product Depth
- 25.40 cm - 10.00 in
- Operating Temprature
- -10 °C to +40 °C (+14 °F to +100 °F)
- Dehydrator Type
- Automatic Membrane
- Volume Capacity, maximum
- 1699.00 L - 60.00 ft³
- Power Cord
- USA power cord
- Mount Type
- Floor - Rack - Shelf - Wall
- Port Count
- 1
- Port Type
- 3/8 in PE tube
- Volume Capacity, minimum
- 42.48 L - 1.50 ft³
- Voltage
- 48 Vdc ±10% inverter
- Power Consumption
- 200.0 W
- Power Frequency
- Single
- Power Phase
- Single
- Suggested Curcuit Breaker Size
- 20 A
- Voltage Type
- dc
- Dew Point
- Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F)
- Flow Rate
- 4.20 SLPM - 0.15 SCFM
- Cut In Pressure
- 13.79 kPa - 2.00 psig
- Alarm Type
- Summary
- Excess-Run Alarm
- 10 minutes, factory set
- Low-Pressure Alarm
- 68 mbar - 7 kPa - 1 psig
- Alarm Contact Rating
- Form C dry contacts, 2 amps at 30 Vdc
- Circuit Breaker Requirement
- Electrical connections require separate circuits for dehydrator installation
- Cut In/Out Pressure Type
- factory set
- Cut Out Pressure
- 34.47 kPa - 5.00 psig
- Rack Type
- EIA 19 in
- Rack Units
- 5
