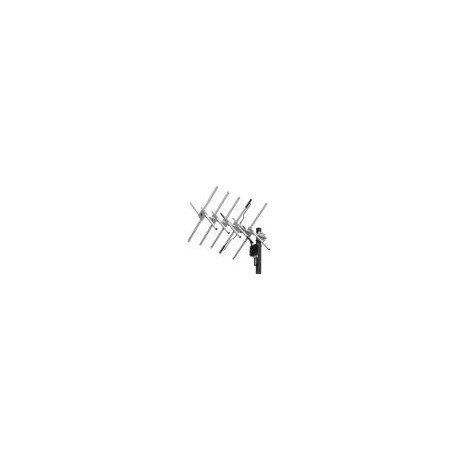

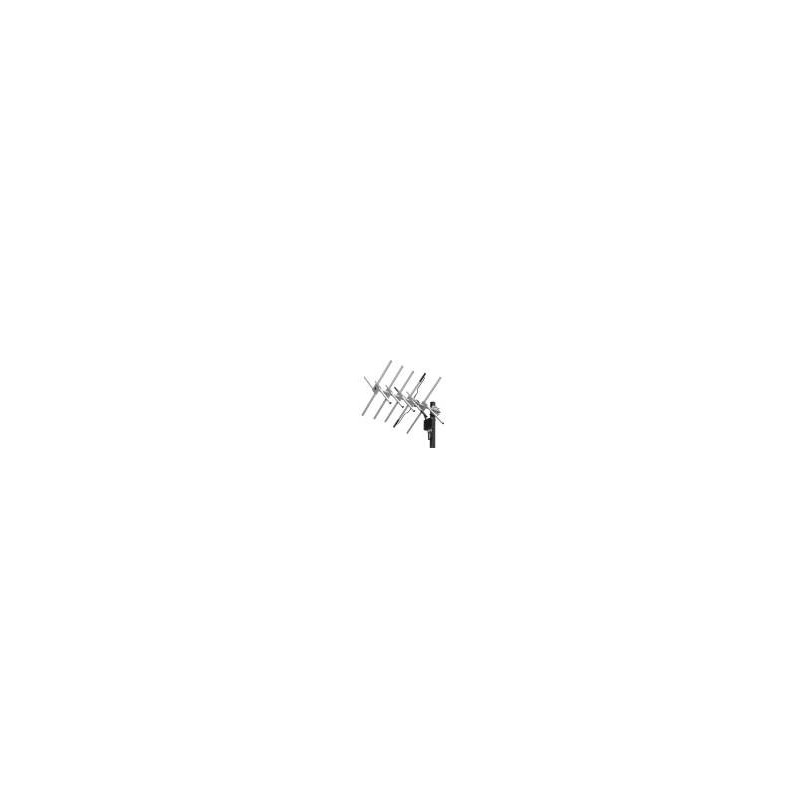

VHF-TV 54-88/174-216 MHz - Yagi

$0.00

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Reference HDCA-5CP_CM_75

In stock 999999 Items

Data sheet

PDF: /pdfs/HDCA-5CP_CM_75.pdf
docs Y: y
Dimensions: 107 x 106.5 inches maximum (2718 x 2705 mm)
Weight: 38 lb (17.2 kg)
Mounting: For masts of 2.375 inches (60 mm) OD. Center-mount (channels 2–6)
Frequency Range: Any specified VHF-TV channel 54 to 88 MHz or 174 to 216 MHz
Shipping weight: 46 lb (20.9 kg) maximum
Gain: Channels 2–3 3.7 dBd Channels 4–6 4.5 dBd Channels 7–13 5 dBd
VSWR: 1.5
Impedance: 50 or 75 ohms
Polarization: Circular
Maximum input power: 250 watts 50Ω 100 watts 75Ω
Connector: 50Ω N or 75Ω N female
Front to back ratio: 16.8 dB
Shipping dimensions: 125 x 10 x 6 inches maximum (3175 x 254 x 152 mm)
Flat Plate Area: 4.27 ft2 (0.397 m2) maximum
