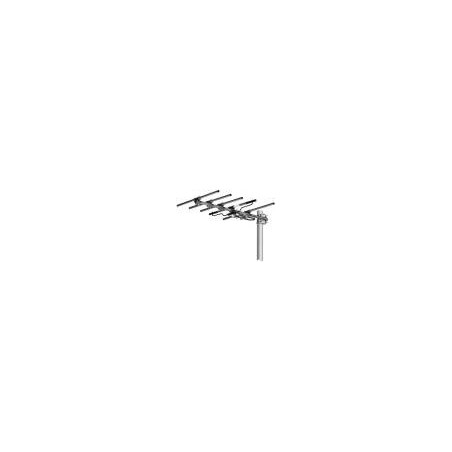

VHF-TV 54-88 MHz - Yagi

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HDCA-5_HRM_TV_Ch_2-6
999999 Items

Data sheet

PDF
/pdfs/HDCA-5_HRM_TV_Ch_2-6.pdf
docs Y
y
Dimensions
106.5 x 105.9 inches maximum (2705 x 2690 mm)
Weight
19.7 lb (9 kg) maximum
Mounting
For masts of 2.375 inches (60 mm) OD.Horizontal polarization rear-mount
Frequency Range
Any specified VHF-TV channel 54 to 88 MHz
Shipping weight
25 lb (11.3 kg) maximum
Gain
Channels 2ā€“3 6.75 dBd Channels 4ā€“6 7.5 dBd
VSWR
1.5
Impedance
75 ohms (50 ohms with optional transformer)
Polarization
Horizontal or vertical
Maximum input power
250 watts, type ā€œNā€ 75 ohm termination
Connector
75Ω N female
Front to back ratio
14 dB
Shipping dimensions
112 x 6 x 5 inches maximum (2845 x 153 x 127 mm)
Flat Plate Area
4.3 ft2 (0.4 m2) maximum
