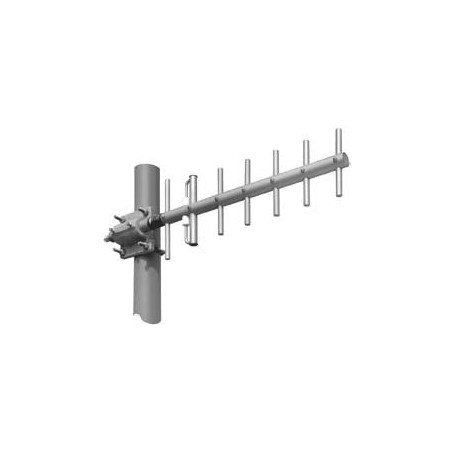

Cellular - SMR - 700 806-869 MHz - PANEL

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

TY-840
999999 Items

Data sheet

PDF
/pdfs/TY-840.pdf
docs Y
y
Dimensions
24.5 x 8.375 inches (622 x 213 mm)
Weight
2.9 lb (1.3 kg)
Mounting
For masts of 1.25 to 2.375 inch (32 to 60 mm) OD.
Frequency Range
806–869 MHz
Gain
12 dBi
VSWR
1.5
Impedance
50 ohms
Polarization
Horizontal or vertical
Maximum input power
100 watts (at 50°C)
Connector
N female
Front to back ratio
18 dB
Shipping dimensions
28 x 10 x 4.5 inches (710 x 254 x 114 mm)
H Plane beamwidth
59 degrees (half-power)
E Plane beamwidth
48 degrees (half-power)
Wind Load
at 93 mph (150kph) 3 lbf / 4 lbf (11 N) / (17 N)
Wind Survival
120 mph (200 kph)
