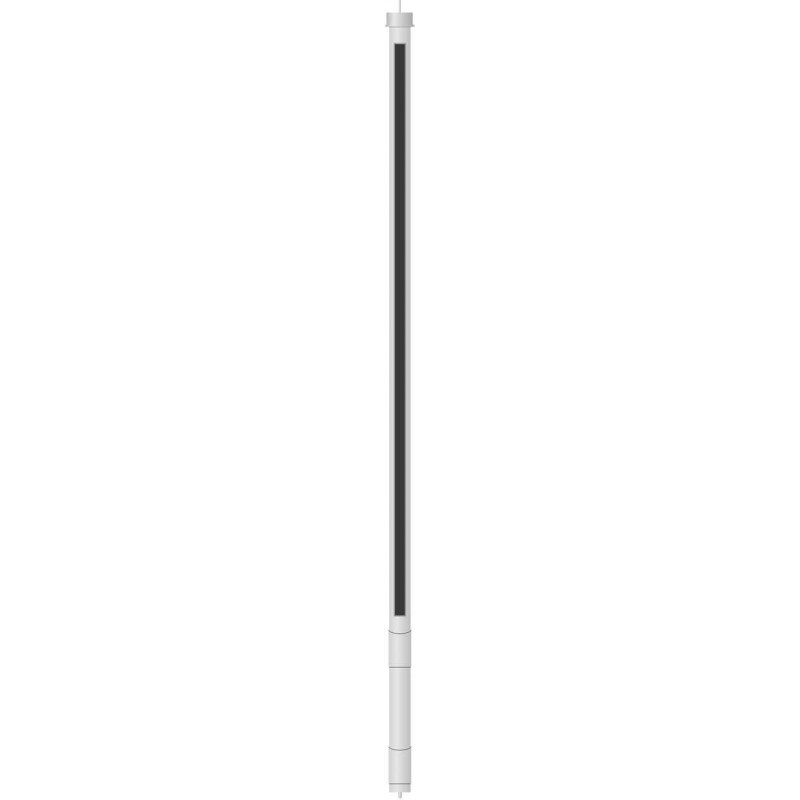

Cellular - SMR - 700 902-928 MHz - OMNI
search
  • Cellular - SMR - 700 902-928 MHz - OMNI

Cellular - SMR - 700 902-928 MHz - OMNI

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

SL11-915-DT2
999999 Items

Data sheet

PDF
/pdfs/SL11-915-DT2.pdf
docs Y
y
Height
180.25 inches (4578 mm)
Weight
26 lb (11.8 kg)
Mounting
Mounting kits are available for attachment to a
Frequency Range
902–928 MHz
Shipping weight
48 lb (21.8 kg)
Gain
13.4 dBi (maximum)
VSWR
1.35
Impedance
50 ohms
Polarization
Horizontal
Maximum input power
300 watts (at 50°c)
Connector
N female
Shipping dimensions
190 x 6 x 6 inches
H Plane beamwidth
5.8 degrees (half-power)
Electrical downtilt
2 degrees (other values optional)
Equivalent flat plate area
2.97 ft2 (0.276 m2)
Wind Velocity Survival Rating
100 mph (161 kph)
Diameter, nominal
2.375 inches (60 mm)
