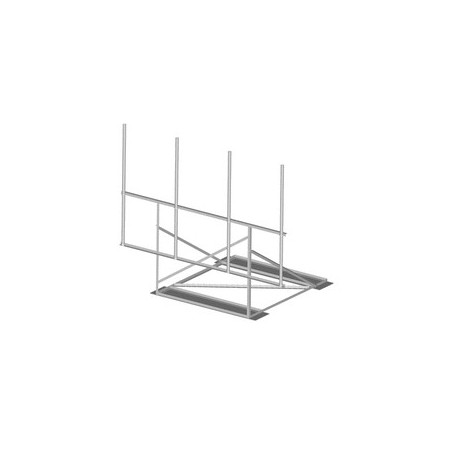

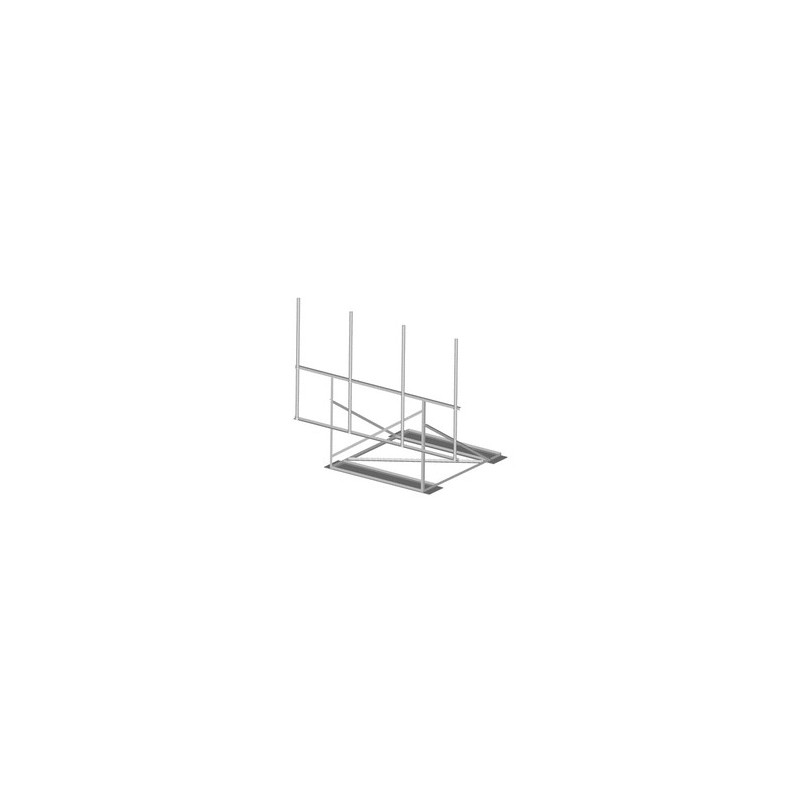

Non-Penetrating Roof Frame, 7 ft face, two 2-3/8 in OD x 72 in pipes
search
  • Non-Penetrating Roof Frame, 7 ft face, two 2-3/8 in OD x 72 in pipes

Non-Penetrating Roof Frame, 7 ft face, two 2-3/8 in OD x 72 in pipes

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

RF-N7-2-72
999999 Items

Data sheet

PDF
/pdfs/RF-N7-2-72.pdf
docs Y
y
specs Y
y
Length
2540.0 mm - 100.0 in
Width
2133.6 mm - 84.0 in
Height
1828.8 mm - 72.0 in
Weight
174.4 kg - 384.5 lb
Mounting
Non-penetrating
Includes
Rubber mats, with or without pipe mounts
Product Type
Roof frames
Material Type
Hot dip galvanized steel
Package Quantity
1
Outer Diameter
60.3 mm - 2 3/8 in
Pipe Length
1828.8 mm - 72.0 in
Pipe, quantity
2
Face Width
2.1 m - 7.0 ft
Wind Rating
85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method
TIA/EIA-222-G
Note
Four 120 in x 8 in panel antennas per sector
