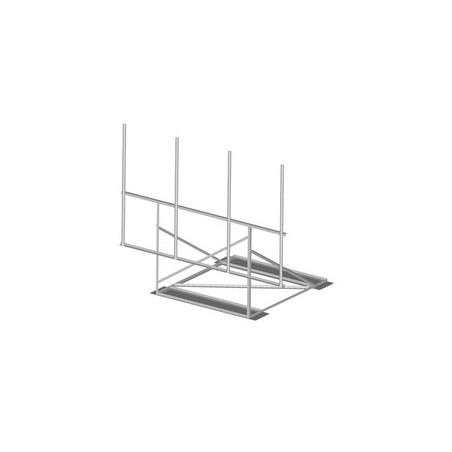

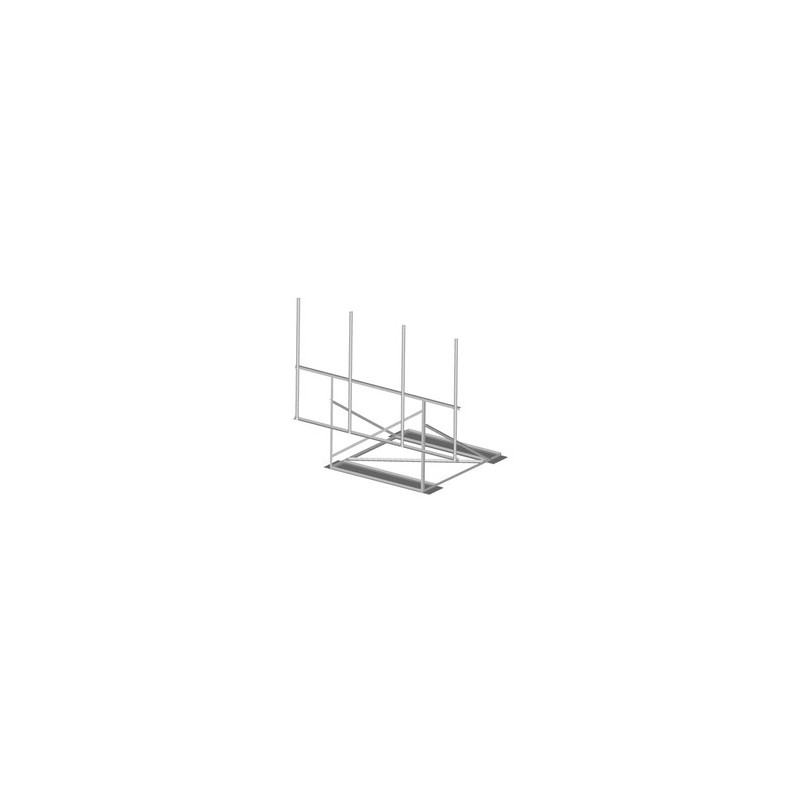

Non-Penetrating Roof Frame, 10 ft face, pipe not included
search
  • Non-Penetrating Roof Frame, 10 ft face, pipe not included

Non-Penetrating Roof Frame, 10 ft face, pipe not included

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

RF-N10-B
999999 Items

Data sheet

PDF
/pdfs/RF-N10-B.pdf
docs Y
y
specs Y
y
Length
2540.0 mm - 100.0 in
Width
3200.4 mm - 126.0 in
Height
1905.0 mm - 75.0 in
Weight
161.1 kg - 355.2 lb
Mounting
Non-penetrating
Includes
Rubber mats, with or without pipe mounts
Product Type
Roof frames
Material Type
Hot dip galvanized steel
Package Quantity
1
Outer Diameter
60.3 mm - 2 3/8 in
Face Width
3.2 m - 10.5 ft
Wind Rating
85 mph (BWS) at 100 ft AGL using Exposure C per UBC
Wind Rating Test Method
TIA/EIA-222-G
Note
Four 120 in x 8 in panel antennas per sector
