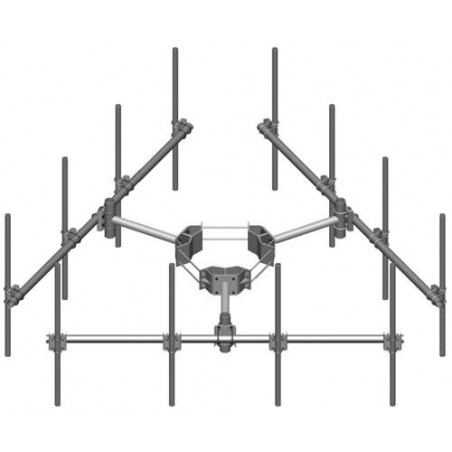

Monopole Co-location T-Frame Kit, 30 in to 60 in OD, 10 ft face, includes pipe

$0.00

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Reference MC-K10L-12-96

In stock 999999 Items

Data sheet

PDF: /pdfs/MC-K10L-12-96.pdf
docs Y: y
specs Y: y
Length: 914.4 mm - 36.0 in
Width: 3200.4 mm - 126.0 in
Height: 2438.4 mm - 96.0 in
Weight: 596.0 kg - 1314.0 lb
Mounting: Monopole, 762–1524 mm (30–60 in) OD
Includes: Cellular pipe frames - Pipe mounts - Ring mount - Stand-off arms
Product Type: Co-location t-frame kits
Material Type: Hot dip galvanized steel
Outer Diameter: 60.3 mm - 2 3/8 in
Pipe Length: 2438.4 mm - 96.0 in
Pipe, quantity: 12
Face Width: 3.2 m - 10.5 ft
Sectors, quantity: 3
Stand-off Distance: 914.4 mm - 36.0 in
Wind Rating: 120 mph (BWS) at 150 ft AGL - 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Test Method: TIA/EIA-222-G
Mounting Diameter, minimum: 762.0 mm - 30 in
Mounting Diameter, maximum: 1524.0 mm - 60 in
Man Rating: 250 lb vertical man load at 15 mph (BWS)
EPA with 1/2 in (12 mm) radial ice: 1.2 m² - 12.7 ft²
EPA without ice: 0.9 m² - 10.0 ft²
Wind Rating Criteria: Four 72 in x 8 in panel antennas per sector
