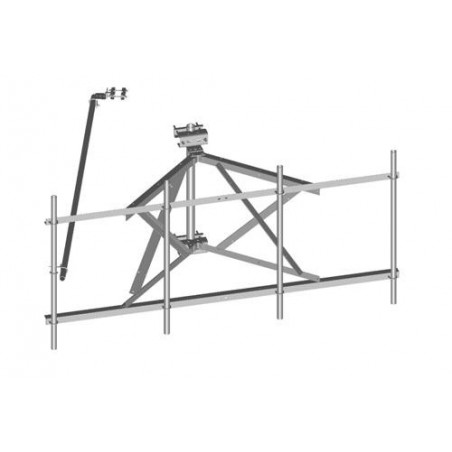

Stand-Off Sector Frame, 10 ft face, includes pipe

$0.00

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Reference SF-SU10-2-96

In stock 999999 Items

Data sheet

PDF: /pdfs/SF-SU10-2-96.pdf
docs Y: y
specs Y: y
Length: 1320.8 mm - 52.0 in
Width: 3200.4 mm - 126.0 in
Height: 2438.4 mm - 96.0 in
Weight: 187.8 kg - 414.0 lb
Mounting: Angle 60°, 203.2 mm (8 in) - Angle 90°, 152.4 mm (6 in) - Straight or tapered legs up to 203.2 mm (8 in) OD
Includes: Clamps - Frame - Pipe mounts - Saddle mounts - Stiff arm
Product Type: Tower stand-off sector frames
Material Type: Hot dip galvanized steel
Package Quantity: 1
Outer Diameter: 60.3 mm - 2 3/8 in
Pipe Length: 2438.4 mm - 96.0 in
Pipe, quantity: 2
Face Width: 3.2 m - 10.5 ft
Stand-off Distance: 1320.8 mm - 52.0 in
Wind Rating: 120 mph (BWS) at 150 ft AGL - 140 mph (3-second gust) at 150 ft AGL using Exposure D per FBC
Wind Rating Test Method: TIA/EIA-222-G
Note: Four 72 in x 8 in panel antennas per sector
Mounting Diameter, minimum: 0.0 mm - 0 in
Mounting Diameter, maximum: 203.2 mm - 8 in
Man Rating: 250 lb vertical man load at 15 mph (BWS)
EPA with 1/2 in (12 mm) radial ice: 2.0 m² - 21.9 ft²
EPA without ice: 1.6 m² - 16.8 ft²
Tower Taper: Non-tapered - Tapered
