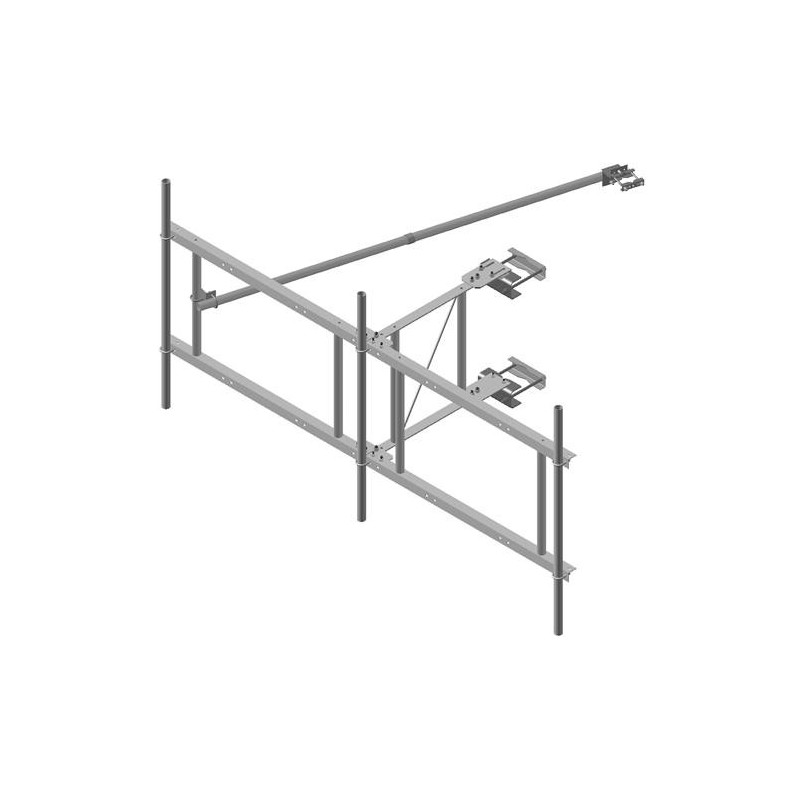

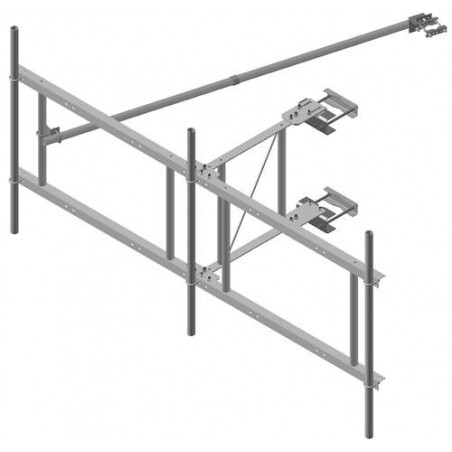

Quik-Tee Antenna Â® Sector Frame, 14 ft face, includes pipe

$0.00

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Reference QT-SF14-3-72

In stock 999999 Items

Data sheet

PDF: /pdfs/QT-SF14-3-72.pdf
docs Y: y
specs Y: y
Length: 1219.2 mm - 48.0 in
Width: 4419.6 mm - 174.0 in
Height: 1828.8 mm - 72.0 in
Weight: 231.2 kg - 509.7 lb
Mounting: Angle 60°, 203.2 mm (8 in) - Angle 90°, 152.4 mm (6 in) - Straight or tapered legs up to 203.2 mm (8 in) OD
Includes: Clamps - Frame - Pipe mounts - Saddle mounts - Stiff arm
Product Type: Quik-Tee® sector frames
Material Type: Hot dip galvanized steel
Package Quantity: 1
Outer Diameter: 60.3 mm - 2 3/8 in
Pipe Length: 1828.8 mm - 72.0 in
Pipe, quantity: 3
Face Width: 4.4 m - 14.5 ft
Stand-off Distance: 1219.2 mm - 48.0 in
Wind Rating: 90 mph (BWS) at 150 ft AGL
Wind Rating Test Method: TIA/EIA-222-G
Note: Four 72 in x 8 in panel antennas per sector
Mounting Diameter, minimum: 0.0 mm - 0 in
Mounting Diameter, maximum: 203.2 mm - 8 in
Man Rating: 250 lb vertical man load at 15 mph (BWS)
EPA with 1/2 in (12 mm) radial ice: 1.9 m² - 20.6 ft²
EPA without ice: 1.5 m² - 16.3 ft²
Tower Taper: Non-tapered - Tapered
Wind Rating with Additional Stiff Arm: 120 mph (BWS) at 150 ft AGL - 140 mph (3-second gust) at 150 ft AGL using ExposureD per FBC
