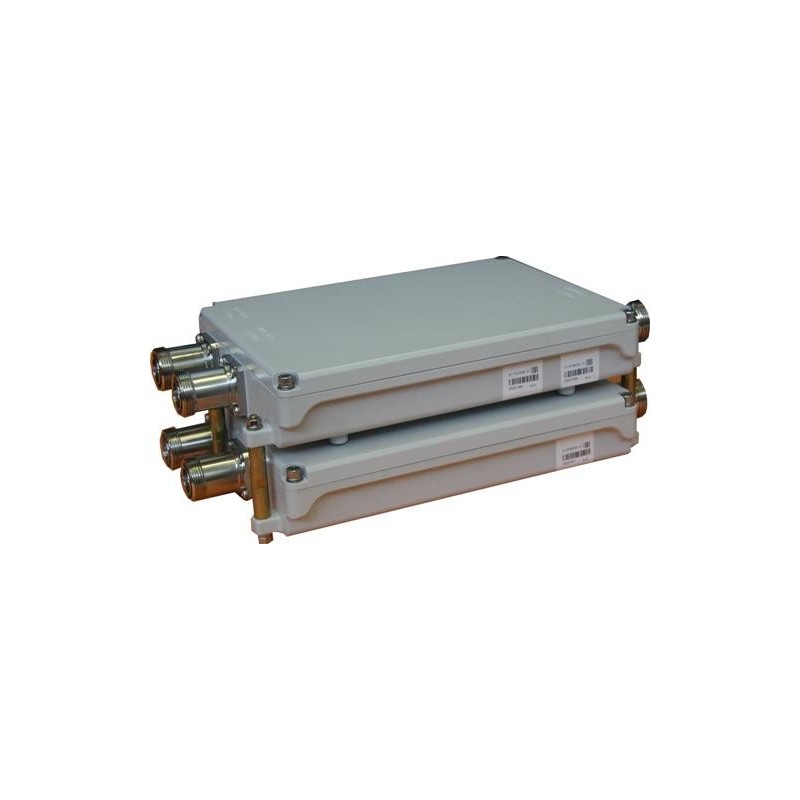

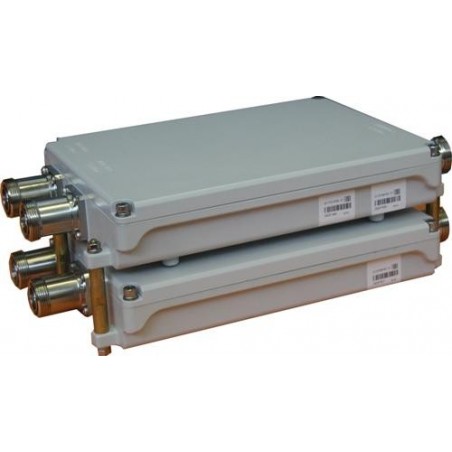

OneBasecable connector Diplexer, DCS 1800/UMTS 2100

Data sheet

PDF

/pdfs/E11F01P11.pdf

docs Y

y

specs Y

y

Width

175.0 mm - 6.9 in

Depth

46.2 mm - 1.8 in

Height

240.0 mm - 9.4 in

Includes

Mounting hardware

Application

Indoor - Outdoor

Volume Capacity, maximum

3.8 L

Operating Frequency Band

1710 – 1880 MHz

Mounting Pipe Diameter

40–160 mm

Color

Gray

License Band

DCS 1800

Operating Temperature

-40 °C to +60 °C (-40 °F to +140 °F)

3rd Order IMD, maximum

-110 dBm

Output Power, maximum composite

240 W

3rd Order IMD Test Method

Two +43 dBm carriers

dc Pass-through

Band 1

Isolation Between Paths, minimum

50.0 dB

Lightning Surge Current

10 kA

Lightning Surge Current Waveform

8/20 waveform

Insertion Loss, maximum

0.30 dB

Return Loss at Frequency Band, minimum

20 dB @ 1710–1880 MHz

Connector Interface

7-16 DIN Female

Connector Interface Style

Long neck

Mounting Pipe Hardware

Band clamps

Relative Humidity

Up to 100%

Weight, without mounting hardware

5.2 kg - 11.5 lb

Corrosion Test Method

IEC 60068-2-11

Damp Heat Exposure Test Method

IEC 60068-2-30

Mechanical Shock Test Method

IEC 60068-2-27

Moisture Resistance Test Method

IEC 60529, IP68

Thermal Shock Test Method

IEC 60068-2-14

UV Resistance Test Method

IEC 60068-2-5

Vibration Test Method

IEC 60068-2-6

Ingress Protection Test Method

IEC 60529
