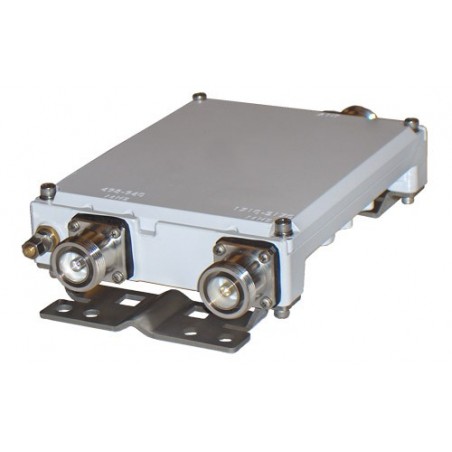

Crossband Coupler, 698-960 MHz/1710-2170 MHz

Data sheet

PDF

/pdfs/CBC721-DF-7-DCB.pdf

docs Y

y

specs Y

y

Width

153.0 mm - 6.0 in

Depth

39.5 mm - 1.6 in

Height

196.0 mm - 7.7 in

Includes

Mounting hardware

Application

Indoor - Outdoor

Operating Temprature

-40 °C to +65 °C (-40 °F to +149 °F)

Volume Capacity, maximum

1.2 L

Operating Frequency Band

698 – 960 MHz

Color

Gray

3rd Order IMD, maximum

-112 dBm

Output Power, maximum composite

500 W

3rd Order IMD Test Method

Two +43 dBm carriers

dc Pass-through

Band 2

Isolation Between Paths, minimum

60.0 dB

Lightning Surge Current

10 kA

Lightning Surge Current Waveform

8/20 waveform

Insertion Loss, maximum

0.15 dB

Return Loss at Frequency Band, minimum

22 dB @ 698–960 MHz

Connector Interface

7-16 DIN Female

Connector Interface Style

Medium neck

Ground Screw Diameter

0.25 in

Relative Humidity

5%–100%

Weight, without mounting hardware

2.0 kg - 4.4 lb

Peak Power

5 kW

Total Group Delay, maximum

10 ns

Ingress Protection Test Method

IEC 60529
