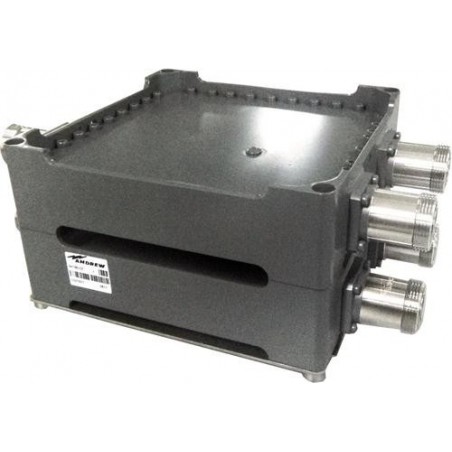

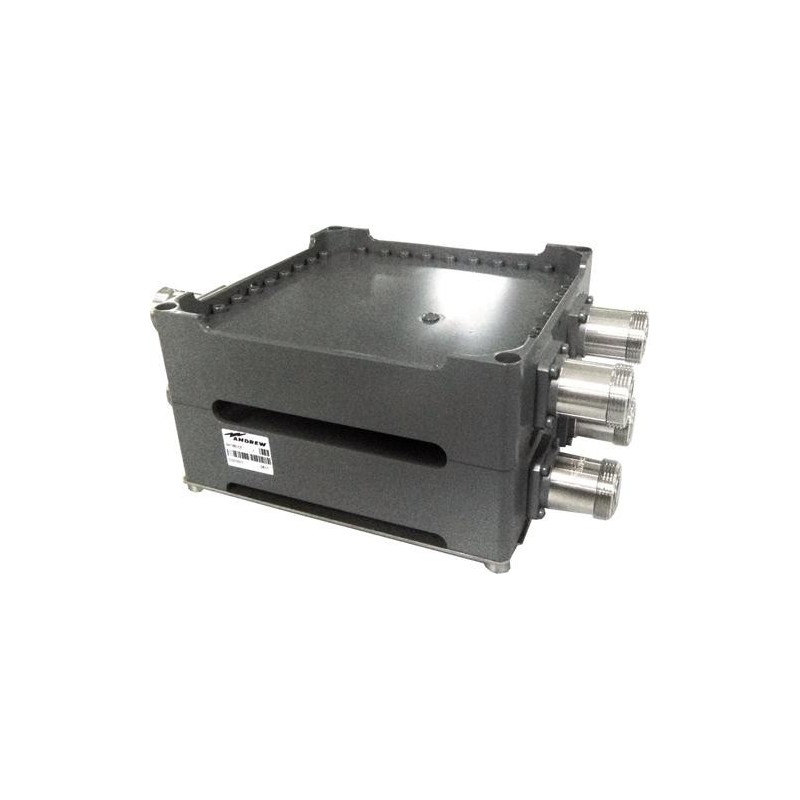

Twin Crossband Coupler, Cellular/900 MHz/DCS 1800/PCS/AWS

Data sheet

PDF

/pdfs/641280-DF-2X.pdf

docs Y

y

specs Y

y

Width

186.0 mm - 7.3 in

Depth

100.0 mm - 3.9 in

Height

186.0 mm - 7.3 in

Includes

Mounting hardware

Application

Indoor - Outdoor

Volume Capacity, maximum

3.4 L

Operating Frequency Band

806 – 960 MHz

Mounting Pipe Diameter

40–160 mm

Color

Gray

License Band

900 MHz - Cellular

Operating Temperature

-40 °C to +65 °C (-40 °F to +149 °F)

3rd Order IMD, maximum

-110 dBm

Output Power, maximum composite

500 W

3rd Order IMD Test Method

Two +43 dBm carriers

dc Pass-through

Band 1 - Band 2

Isolation Between Paths, minimum

47.0 dB

Lightning Surge Current

15 kA

Lightning Surge Current Waveform

8/20 waveform

Insertion Loss, maximum

0.15 dB

Return Loss at Frequency Band, minimum

20 dB @ 806–960 MHz

Connector Interface

7-16 DIN Female

Connector Interface Style

Long neck

Ground Screw Diameter

8.00 mm

Mounting Pipe Hardware

Band clamps

Relative Humidity

Up to 100%

Weight, without mounting hardware

5.0 kg - 11.0 lb

Peak Power

12 kW

dc Test Voltage

4000 V

Ingress Protection Test Method

IEC 60529
