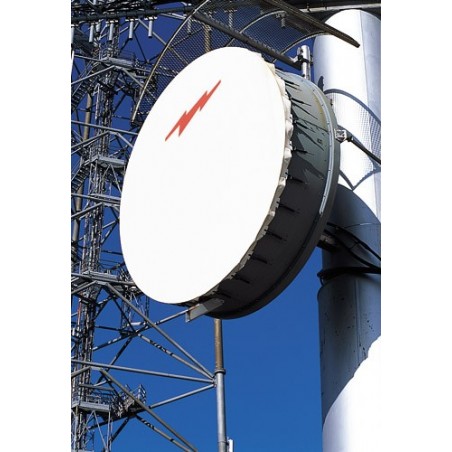

2.4 m - 8 ft High Performance Parabolic Shielded Antenna, dual-polarized, 12.200-12.700 GHz
search
  • 2.4 m - 8 ft High Performance Parabolic Shielded Antenna, dual-polarized, 12.200-12.700 GHz

2.4 m - 8 ft High Performance Parabolic Shielded Antenna, dual-polarized, 12.200-12.700 GHz

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

HPX8-122
999999 Items

Data sheet

Page Title
12.2-12.7GHz Dual Polarized High Performance Andrew Antenna - HPX8-122
PDF
/pdfs/HPX8-122.pdf
docs Y
y
Net Weight
227 kg - 500 lb
Antenna Type
HPX - High Performance Parabolic Shielded Antenna, dual-polarized
VSWR
1.10
Polarization
Dual
Front to back ratio
70 dB
Vertical Beamwidth
0.7 °
Horizontal Beamwidth
0.7 °
Product Title
12.2-12.7GHz Dual Polarized High Performance Andrew Antenna
Wind Velocity Survival Rating
200 km/h - 124 mph
Diameter, nominal
2.4 m - 8 ft
Cross Polarization Discrimination (XPD)
30 dB
Gain, Low Band
47.1 dBi
Electrical Compliance
ETSI Class 2 - US FCC Part 101A - US FCC Part 78A
Gain, Mid Band
47.3 dBi
Gain, Top Band
47.5 dBi
Operating Frequency Band
12.200 – 12.700 GHz
Radiation Pattern Envelope Reference (RPE)
3232D
Return Loss
26.4 dB
Fine Azimuth Adjustment
±5°
Fine Elevation Adjustment
±5°
Mounting Pipe Diameter
115 mm - 4.5 in
Side Struts, Included
1 inboard - 1 outboard
Side Struts, Optional
2 outboard
Wind Velocity Operational
110 km/h - 68 mph
Angle α for MT Max
-110 °
Axial Force (FA)
11284 N - 2537 lbf
Side Force (FS)
5590 N - 1257 lbf
Twisting Moment (MT)
-4901 N•m
Weight with 1/2 in (12 mm) Radial Ice
454 kg - 1001 lb
Zcg with 1/2 in (12 mm) Radial Ice
729 mm - 29 in
Zcg without Ice
673 mm - 26 in
Force on Inboard Strut Side
4260 N - 958 lbf
Force on Outboard Strut Side
5630 N - 1266 lbf
