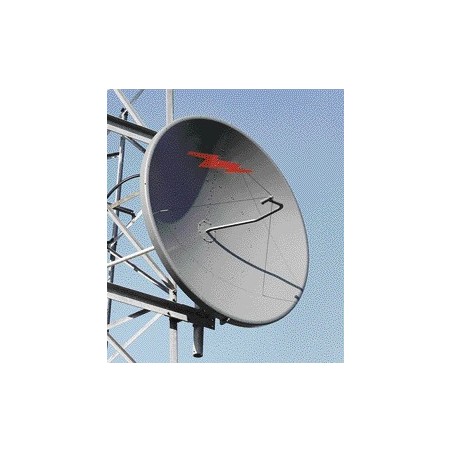

2.4 m - 8 ft Standard Parabolic Unshielded Antenna, dual-polarized, 10.500-10.700 GHz
$0.00
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
PX8-105
999999 Items
Data sheet
- Page Title
- 10.5-10.7GHz Dual Polarized Standard Andrew Antenna - PX8-105
- /pdfs/PX8-105.pdf
- docs Y
- y
- Net Weight
- 114 kg - 251 lb
- Antenna Type
- PX - Standard Parabolic Unshielded Antenna, dual-polarized
- VSWR
- 1.10
- Polarization
- Dual
- Front to back ratio
- 50 dB
- Vertical Beamwidth
- 0.9 °
- Product Title
- 10.5-10.7GHz Dual Polarized Standard Andrew Antenna
- Wind Velocity Survival Rating
- 200 km/h - 124 mph
- Diameter, nominal
- 2.4 m - 8 ft
- Cross Polarization Discrimination (XPD)
- 30 dB
- Gain, Low Band
- 45.8 dBi
- Beamwidth, Horizontal
- 0.9 °
- Electrical Compliance
- US FCC Part 101B
- Gain, Mid Band
- 45.9 dBi
- Gain, Top Band
- 46.0 dBi
- Operating Frequency Band
- 10.500 – 10.700 GHz
- Radiation Pattern Envelope Reference (RPE)
- 3291B
- Return Loss
- 26.4 dB
- Fine Azimuth Adjustment
- ±5°
- Fine Elevation Adjustment
- ±5°
- Mounting Pipe Diameter
- 115 mm - 4.5 in
- Side Struts, Optional
- 1 inboard - 1 outboard
- Wind Velocity Operational
- 110 km/h - 68 mph
- Angle α for MT Max
- -125 °
- Axial Force (FA)
- 15372 N - 3456 lbf
- Side Force (FS)
- 4196 N - 943 lbf
- Twisting Moment (MT)
- -5349 N•m
- Weight with 1/2 in (12 mm) Radial Ice
- 243 kg - 536 lb
- Zcg with 1/2 in (12 mm) Radial Ice
- 427 mm - 17 in
- Zcg without Ice
- 343 mm - 14 in
