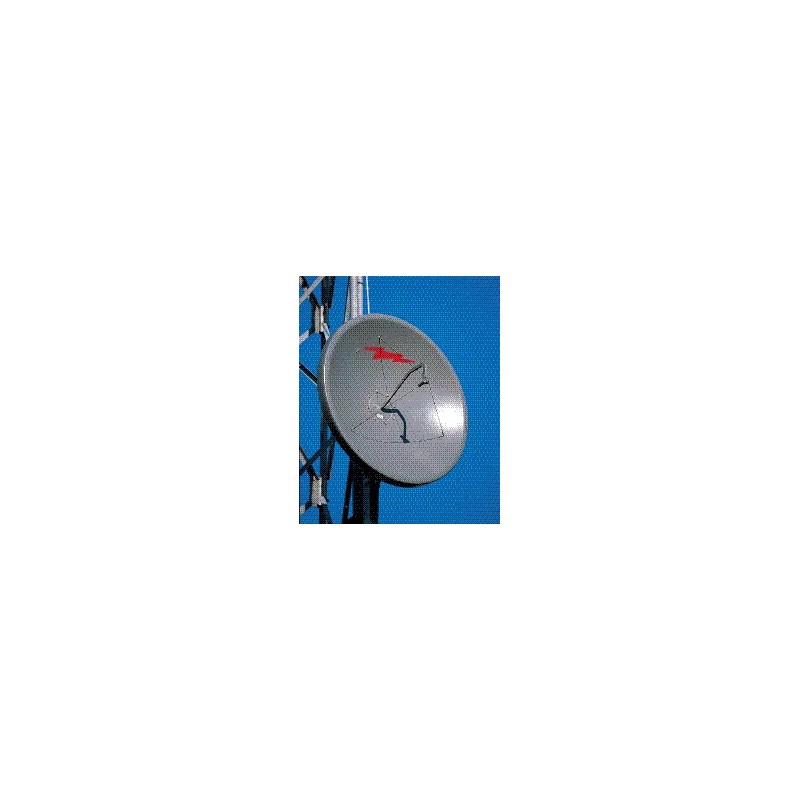

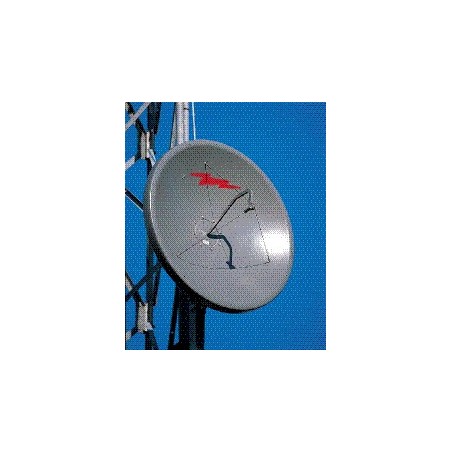

1.8 m - 6 ft Parabolic Unshielded Antenna for Relocation-Category A, single-polarized, 6.425-7.125

$0.00

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Reference PAR6-65-B

In stock 999999 Items

Data sheet

PDF: /pdfs/PAR6-65-B.pdf
docs Y: y
Net Weight: 98 kg - 216 lb
Antenna Type: PAR - Parabolic Unshielded Antenna for Relocation-Category A, single-polarized
VSWR: 1.06
Polarization: Single
Front to back ratio: 59 dB
Vertical Beamwidth: 1.8 °
Horizontal Beamwidth: 1.8 °
Wind Velocity Survival Rating: 200 km/h - 124 mph
Diameter, nominal: 1.8 m - 6 ft
Cross Polarization Discrimination (XPD): 30 dB
Gain, Low Band: 38.7 dBi
Electrical Compliance: ETSI Class 2 - US FCC Part 101A - US FCC Part 74B
Gain, Mid Band: 38.8 dBi
Gain, Top Band: 39.0 dBi
Operating Frequency Band: 6.425 – 7.125 GHz
Radiation Pattern Envelope Reference (RPE): 1290A
Return Loss: 30.7 dB
Fine Azimuth Adjustment: ±15°
Fine Elevation Adjustment: ±20°
Mounting Pipe Diameter: 115 mm - 4.5 in
Side Struts, Included: 1 inboard
Side Struts, Optional: 1 inboard
Wind Velocity Operational: 110 km/h - 68 mph
Angle α for MT Max: -130 °
Axial Force (FA): 8779 N - 1974 lbf
Side Force (FS): 1946 N - 437 lbf
Twisting Moment (MT): 3826 N•m
Weight with 1/2 in (12 mm) Radial Ice: 150 kg - 331 lb
Zcg with 1/2 in (12 mm) Radial Ice: 347 mm - 14 in
Zcg without Ice: 278 mm - 11 in
