  • 1.8 m - 6 ft Standard Parabolic Unshielded Antenna, single-polarized, unpressurized, 5.725-6.425 G

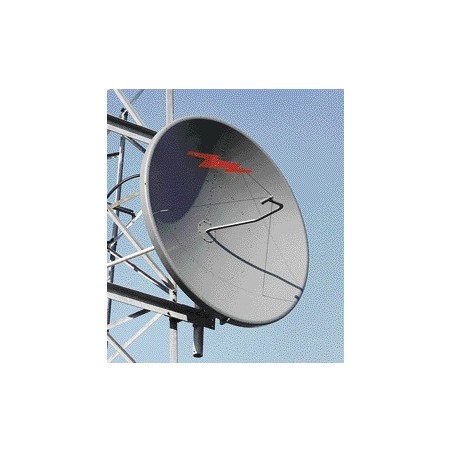

1.8 m - 6 ft Standard Parabolic Unshielded Antenna, single-polarized, unpressurized, 5.725-6.425 G

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

P6F-57W-A
999999 Items

Data sheet

PDF
/pdfs/P6F-57W-A.pdf
docs Y
y
Net Weight
78 kg - 171 lb
Antenna Type
PF - Standard Parabolic Unshielded Antenna, single-polarized, unpressurized
VSWR
1.20
Polarization
Single
Front to back ratio
45 dB
Vertical Beamwidth
2.0 °
Horizontal Beamwidth
2.0 °
Wind Velocity Survival Rating
200 km/h - 124 mph
Diameter, nominal
1.8 m - 6 ft
Cross Polarization Discrimination (XPD)
30 dB
Gain, Low Band
38.0 dBi
Electrical Compliance
US FCC Part 101B
Gain, Mid Band
38.5 dBi
Gain, Top Band
39.0 dBi
Operating Frequency Band
5.725 – 6.425 GHz
Radiation Pattern Envelope Reference (RPE)
4695
Return Loss
30.7 dB
Fine Azimuth Adjustment
±15°
Fine Elevation Adjustment
±20°
Mounting Pipe Diameter
115 mm - 4.5 in
Side Struts, Included
1 inboard
Side Struts, Optional
1 inboard
Wind Velocity Operational
110 km/h - 68 mph
Angle α for MT Max
-130 °
Axial Force (FA)
8779 N - 1974 lbf
Side Force (FS)
1946 N - 437 lbf
Twisting Moment (MT)
3826 N•m
Weight with 1/2 in (12 mm) Radial Ice
150 kg - 331 lb
Zcg with 1/2 in (12 mm) Radial Ice
347 mm - 14 in
Zcg without Ice
278 mm - 11 in
