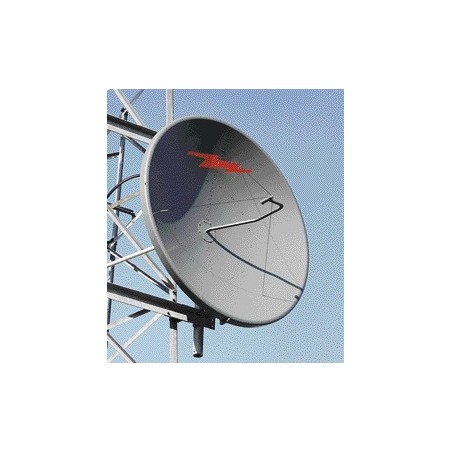

0.6 m - 2 ft Standard Parabolic Unshielded Antenna, single-polarized, unpressurized, 5.725-6.425 G
search
  • 0.6 m - 2 ft Standard Parabolic Unshielded Antenna, single-polarized, unpressurized, 5.725-6.425 G

0.6 m - 2 ft Standard Parabolic Unshielded Antenna, single-polarized, unpressurized, 5.725-6.425 G

$0.00
Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

P2F-57W
999999 Items

Data sheet

PDF
/pdfs/P2F-57W.pdf
docs Y
y
Net Weight
8 kg - 18 lb
Antenna Type
PF - Standard Parabolic Unshielded Antenna, single-polarized, unpressurized
VSWR
1.20
Polarization
Single
Front to back ratio
40 dB
Vertical Beamwidth
5.8 °
Horizontal Beamwidth
5.8 °
Wind Velocity Survival Rating
200 km/h - 124 mph
Diameter, nominal
0.6 m - 2 ft
Cross Polarization Discrimination (XPD)
30 dB
Gain, Low Band
29.2 dBi
Electrical Compliance
ETSI Class 1
Gain, Mid Band
29.3 dBi
Gain, Top Band
29.9 dBi
Operating Frequency Band
5.725 – 6.425 GHz
Radiation Pattern Envelope Reference (RPE)
2892
Return Loss
26.4 dB
Fine Azimuth Adjustment
±5°
Fine Elevation Adjustment
±5°
Mounting Pipe Diameter
115 mm - 4.5 in
Wind Velocity Operational
110 km/h - 68 mph
Angle α for MT Max
-10 °
Axial Force (FA)
483 N - 109 lbf
Side Force (FS)
297 N - 67 lbf
Twisting Moment (MT)
128 N•m
Weight with 1/2 in (12 mm) Radial Ice
37 kg - 82 lb
Zcg with 1/2 in (12 mm) Radial Ice
251 mm - 10 in
Zcg without Ice
221 mm - 9 in
